(A few) Software Engineering Best Practices

January, 2015

Ricardo M. Ferraz Leal

ferrazlealrm@ornl.gov

Agenda

1. Curiosities about IT projects
2. Software (Design) Degradation
3. Principles of OO Class Design
4. Code Complexity
5. Making clear Functions
6. Some reading...

Curiosities....

The CHAOS Report, by the Standish Group

• 1/6 IT projects have an average cost overrun of 200% and a schedule overrun of 70%.
• 3/4 IT executives believe their projects are "doomed from the start".
• 1/3 IT projects were successfully completed on time and on budget over 2013.
• 1/5 IT projects fail: No value at all!

List of failed and overbudget custom software projects

Most common causes for software failures:

Lack of user participation.

Poor communication among customers, developers, and users.

Sloppy development practices.

Vague, ambiguous, incomplete requirements.

A few interesting findings:

"It is hard to figure out what needs to be built"

"Not enough attention is paid to design"

Countless defects are injected which are only found after developers thought they were ready to ship.

Then, schedules are slipped to fix those defects...

Many projects end up being cancelled as their business cases are no longer valid...

Or the software couldn't be made to work reliably enough.

- Steve Tockey, Model Based Software Engineering manuscript.

Among the software projects that do deliver:

On average, for every 1 dollar spent on development, 4 dollars are spent on maintenance!

So... What to do?

Think first: Better design... (next)

For large projects, Software design complexity is difficult to assess without using complexity metrics and measures.

One approach to controlling software maintenance costs is the utilization of software metrics during the development phase.

The long-term effect of high complexity is that the software will gradually degrade to a state whereby its maintenance is too costly or impossible.

Software degradation

Symptoms of Poor Design

Rigidity

The system is hard to change:
Every change forces many other changes to other parts of the system.
Changes propagate via dependencies to other modules

Fragility

Changes cause the system to break in places that have no conceptual relationship to the part that was changed.
Fixing the problems causes new problems...

Immobility

It is hard to disentangle the system into components that can be reused in the other systems.

Viscosity

Doing things right is harder than doing things wrong...

Telltale signs: When a change is needed, you are tempted to hack rather than to preserve the original design.

Needless Complexity

The design contains infrastructure that adds no direct benefit.
Too much anticipation of future needs...

Needless Repetition

The design contains repeating structures that could be unified under a single abstraction.
The same code appears over and over again....
Too much copy-paste...

Opacity

It is hard to read and understand.
It does not express its intent well...

The Broken Windows Theory

An abandoned building with a few broken windows is more likely to be vandalised if the windows aren’t repaired.
- Wilson & Kelling, 1982.

A successful strategy is to fix problems as soon as possible.

Caracteristics of Good Design

Minimal complexity:

Avoid making clever designs.

Clever designs are usually hard to understand.

Keep it simple

Ease of maintenance:

It is easy to understand and make changes.

Strong cohesion:

Related code from the same module/class should be bound together as far as possible.

Loose coupling:

Loose coupling means designing so that you hold connections among different parts of a program to a minimum.

All modules should be independent as far as possible.

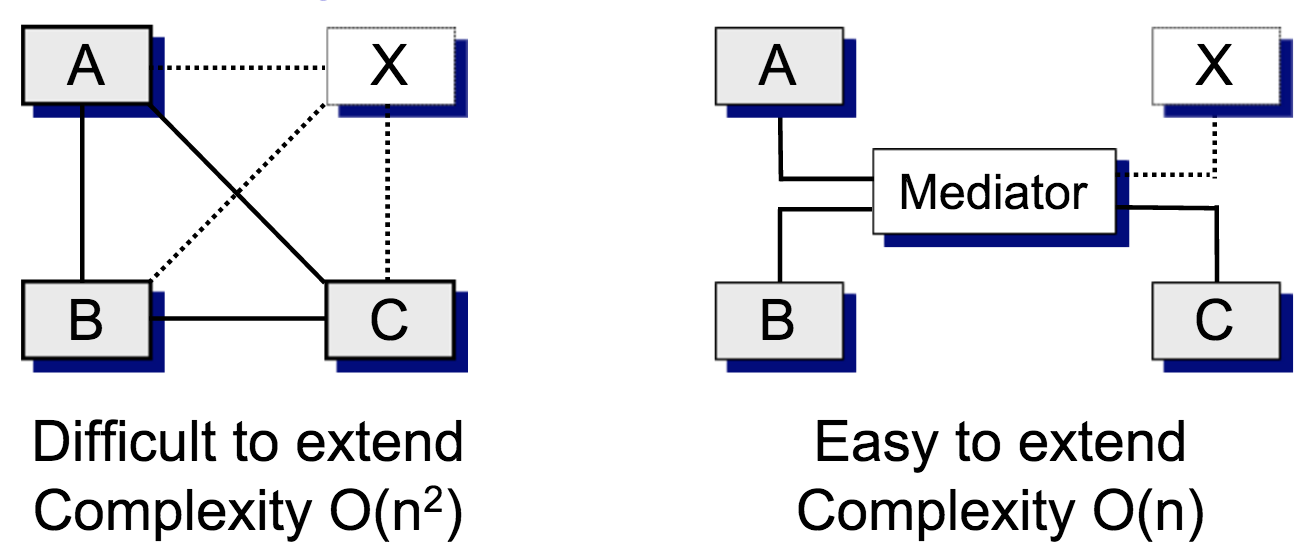

Extensibility:

You should be able to change a piece of the system without causing a huge impact together pieces of the system.

Reusability:

Less code duplication, more code reuse.

Code can be reused in other systems.

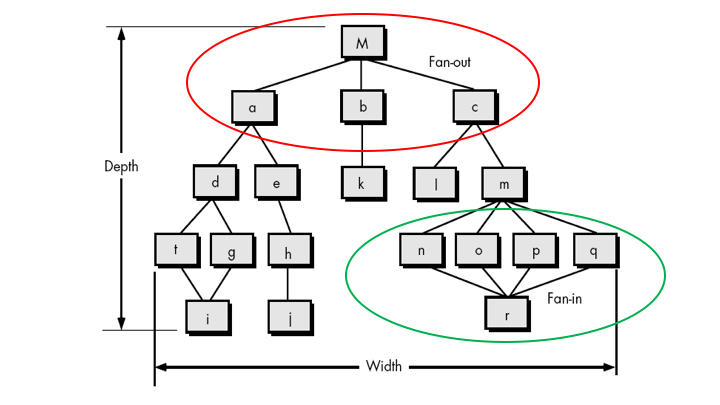

High Fan-In

Refers to having a high number of classes that use a given class.

High fan-in implies that a system has been designed to make good use of utility classes at the lower levels in the system. E.g. Util classes.

Low Fan-Out

A given class should use a low-to-medium number of other classes.

Highfan-out (more than about seven) indicates a class uses a large number of other classes and may be overly complex.

Portability

A program can be run on lot of computers without complex configuration.

Leanness

No redundant modules/classes/functionalities.

Delete your fancy methods! Nobody is likely to use them...

Stratification

Try to keep the levels of decomposition stratified so you can view the system at any single level without dipping into other levels.

Also: Hexagonal Architecture, Ports and Adapters, Onion, etc...

Standard techniques

Use standardised, common approaches!

One Step Build, Testing Frameworks, Standard Libraries, Design Patterns...

SOLID

Principles to OO Class Design

Documentation helps, but documentation is not the solution — simplicity is.

• Single responsibility principle
• Open/closed principle
• Liskov substitution principle
• Interface segregation principle
• Dependency inversion principle

Introduced by Michael Feathers for the "First Five Principles" named by Robert C. Martin in the early 2000s

Single responsibility principle

Every module or class should have responsibility over a single part of the functionality provided by the software, and that responsibility should be entirely encapsulated by the class.

Open/closed principle

"Software entities (classes, modules, functions, etc.) should be open for extension, but closed for modification"

I.e., an entity should allow its behaviour to be extended without modifying its source code

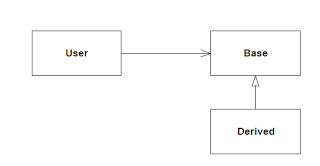

Liskov Substitution Principle

"Subjects in a program should be replaceable with instances of their subtypes without altering the correctness of that program".

I.e, derived classes just extend without replacing the functionality of old classes.
That is, a user of a base class should continue to function properly if a derivative of that base class is passed to it.

Deriving square from rectangle is a classic example of violation of LSP.

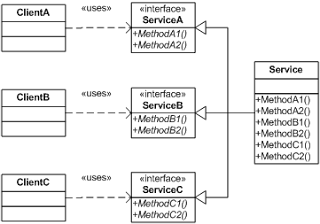

Interface segregation principle

The essence of the principle is quite simple. If you have a class that has several clients, rather than loading the class with all the methods that the clients need, create specific interfaces for each client and multiply inherit them into the class.

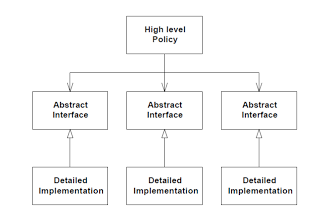

Dependency inversion principle

Depending upon Abstractions: Dependency Inversion is the strategy of depending upon interfaces or abstract functions and classes, rather than upon concrete functions and classes.
The implication of this principle is quite simple. Every dependency in the design should target an interface, or an abstract class. No dependency should target a concrete class.

Package principles

• Package Cohesion Principles
  1. Reuse-release equivalence principle (REP): "The Granule of reuse is the granule of release"
  2. Common-reuse principle (CRP): "Classes that aren't reused together should not be grouped together"
  3. Common-closure principle (CCP): "Classes that change together, belong together. "
• Package Coupling Principles
  1. The Acyclic Dependencies Principle: "The dependencies between packages must not form cycles"
  2. The Stable Dependencies Principle: "Depend in the direction of stability"
  3. The Stable Abstractions Principle: "Stable packages should be abstract packages"

And many more...

• Program to Interface Not Implementation.
• DRY - Don't Repeat Yourself.
• Encapsulate What Varies.
• Depend on Abstractions, Not Concrete classes.
• Least Knowledge Principle (Law of Demeter).
  • my_television.front_panel.switches.power.on();
  • my_television.power_up();
• Favor Composition over Inheritance.
• Hollywood Principle: Tell-Don't-Ask
  • Send commands to objects telling them what you want done!
• Apply Design Pattern wherever possible
• Strive for Loosely Coupled System.
• KISS - Keep it Simple and Sweet / Stupid.

Code Complexity

Managing complexity is the most important technical topic in software development.
– Steve McConnell in Code Complete.

Several Studies have found a positive correlation between cyclomatic complexity and defects:

Methods that have the highest complexity tend to also contain the most defects.

Correlation between LOC and defects has not been proven yet!

Complexity

Halstead's Complexity Measures

Cyclomatic Complexity Measures

Function Point

Mantid Algorithms

Cyclomatic Complexity Number per routine

NLOC = lines of code without comments.

CCM > 15 is BAD!! CCN below 10 is desirable...

A few more (not so) interesting figures:

Functions GetDetOffsetsMultiPeaks::fitSpectra and ReflectometryReductionOne::transmissonCorrection have 14 parameters

By the way... A good number is maximum of 3!

length( DiffractionEventCalibrateDetectors::exec ) == 304

NLOC for GenerateEventsFilter.cpp == 1302

Handling Code complexity

Complexity is reduced by dividing a system into subsystems that are ideally independent.

Write shy code:

• Don't reveal yourself to others.
• Don't interact with too many people.

- Andy Hunt and Dave Thomas in The Pragmatic Programmer

Strong cohesion: Encapsulate for easier understanding

• Identify and isolate areas likely to change:
  • Hiding sources of change so its effects are localized: e.g. bad design or construction, or data-size constraints.

Keeping coupling loose:

• Don't use semantic knowledge from other module's inner workings!
• Law of Demeter (LoD) or principle of least knowledge (next).

This clearly violates the LoD:


              ws.getRun().getGoniometer().getEulerAngles('YZY')



Design patterns provide vocabulary for efficient communication, and embody accumulated wisdom over years.

However, DO NOT overuse them!!!

Meta-Programming

Put abstractions in code, details in metadata

Separation of Code and Data!

Example: If generating files DO NOT put tags (e.g. XML) in the code!

For Python, use: Django template language (DTL), Jinja2, etc...


ws = CropWorkspace({{data.ws_name}}, XMin={{data.xmin}}, XMax={{data.xmax}})
ws = Power({{data.ws_name}}, Exponent={{data.exponent}})
{% for file in data.files %}
  ws_{{loop.index}} = Load({{file}})
{% endfor %}


data = {'ws_name' : 'abc',
        'xmin' : 1,
        'xmax' : 100,
        'exponent' : 20,
        'files' : ['/tmp/f1.nxs','/tmp/f2.nxs','/tmp/f3.nxs']
}



Good Practices for Functions

Design by Contract

• What does contract expect - @precondition
• What does contract guarantee? - @postcondition
• What does contract maintain? - @invariant

It is the caller's responsibility to make sure the pre-condition is met.

PEP 0316 - Programming by Contract for Python

Status: Deferred

Alternatives:

• PyContract
• PyDBC
• decontractors

DbC in Python


    from decontractors import *
    @Precondition(lambda: x > 0 and y > 0)
    @Postcondition(lambda: __return__ == (x + y))
    def positive_nonzero_addition(x, y):
      # Try changing the expression to return something else
      return x + y # Won't work if at least one parameter is negative or zero
    print positive_nonzero_addition(4, 1)



DbC in Python: Assertions do (part of) the job!


    def positive_nonzero_addition(x, y):
      assert x > 0, 'x must be positive!' assert y > 0, 'y must be positive!'
      return x + y print positive_nonzero_addition(4, 1)
    print positive_nonzero_addition(4, -1)




    $ python -O 'filename' # Turns assertions off!

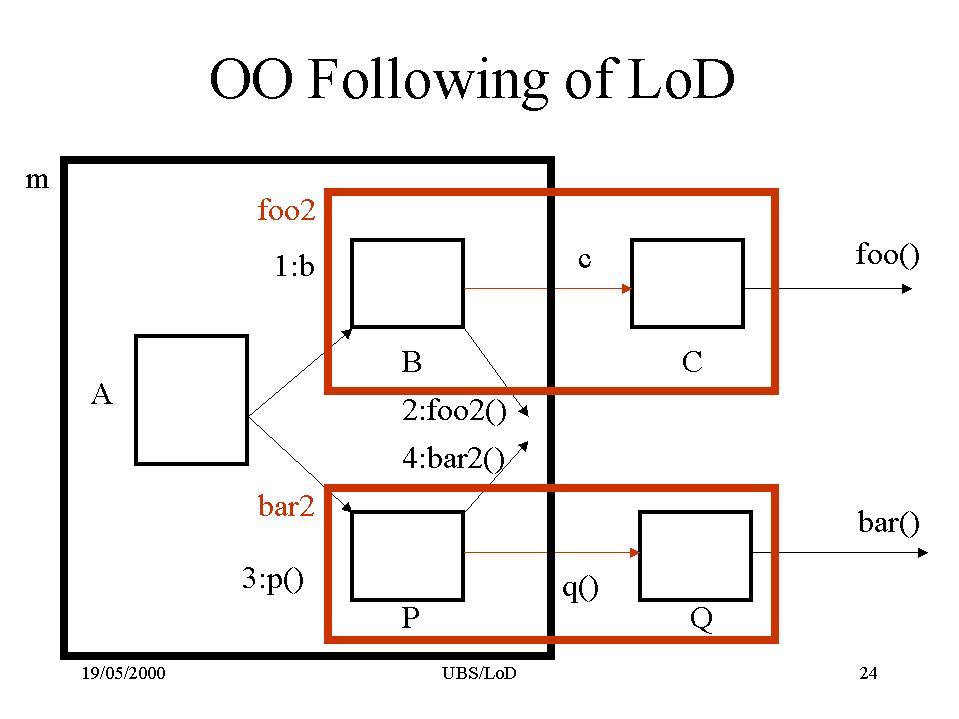

Law of Demeter

• You can play with yourself.
• You can play with your own toys (but you can't take them apart),
• You can play with toys that were given to you.
• And you can play with toys you've made yourself.

-- Peter Van Rooijen (Usenet)

Law of Demeter: Functions

The Law of Demeter for functions states that any method of an object should call only methods belonging to itself, any parameters that were passed in to the method, any objects it created, or any directly held component object.


              class Demeter {
                private:
                  A *a;
                  int func();
                public:
                  void example(B& b);
              }
              void Demeter::example(B& b) {
                C c;
                // itself
                int f = func();
                // any parameters that were passed in to the method
                b.invert();
                a = new A();
                // any objects created
                a->setActive();
                //any directly held component objects
                c.print();
              }



Law of Demeter: Cons

The cost:

You will be writing a large number of wrapper methods that simply forward the request on to a delegate.

These wrapper methods will impose both a runtime cost and a space overhead, which may be significant—even prohibitive—in some applications.

Replace Conditional with Polymorphism:

• Python factories
• C++: Non OOP vs OOP

See: Replace Conditional with Polymorphism

Python: Simple Example

Regular conditional:


              if extension == ".bat":
                doBat()
              elif extension == ".sh":
                doSh()
              (.....)



Cleaner (?):


              doExtensions = {
                ".bat" : doBat,
                ".sh" : doSh,
                (...)
              }
              doExtensions[extension]()



Refactoring: Replace Nested Conditional with Guard Clauses

Avoid Deep Nesting!

Before:


              double getPayAmount() {
                  double result;
                  if (_isDead) result = deadAmount();
                  else {
                      if (_isSeparated) result = separatedAmount();
                      else {
                          if (_isRetired) result = retiredAmount();
                          else result = normalPayAmount();
                      };
                  }
                  return result;
              };



After:


              double getPayAmount() {
                  if (_isDead) return deadAmount();
                  if (_isSeparated) return separatedAmount();
                  if (_isRetired) return retiredAmount();
                  return normalPayAmount();
              };



CCN is the same, but nesting depth is better!
See : Replace Nested Conditional with Guard Clauses

Try and leave this world a little better than you found it.
- Robert Baden-Powell, the founder of the "Scout Movement".

”Leave the code cleaner than you found it!”

MANTID

Sugestions

Classes

Single Responsability

Does your class represent more than one entity, or have more than one responsability???

If so, break it down!

Methods

Single Responsability

• Does the function title summarise its intent???
• If it doesn't, break it down!
• Too many parameters might be telling you something...
• Pre-conditions: What are valid input parameters (ranges, type, etc)?
• If you are the caller, don't forget to make sure the parameters are validated before!
• Post-conditions: What is supposed to be returned
• Can we use assertions only in the test/development environment?

Methods 2

• Limit function size: VT100 size (24x80)?
• Comments:
• Avoid obvious comments!
• Function intent (Not what it does!)
• Choices made (i.e. why algorithm X and not Y)
• Limit Conditionals, nested Cycles and nested Conditionals
• Try to follow the Law of Demeter.
• Write code for others, not for you!

Use Code Complexity tools.

More

• Can we make Algorithms smaller?
• exec() should have few clean lines
• Can we separate functionality into independent packages?
• 'technique'.'facility'.'instrument'?

              sans.sns
              sans.sns.eqsans
              geometry
              util.units
              util.loaders




Always code as if the person who ends up maintaining your code is a violent psychopath who knows where you live.

John Woods in comp.lang.c++ - Usage of comma operator, 1991.

References

ISO 9126

The ISO 9126-1 software quality model:

• Functionality
• Reliability
• Usability
• Efficiency
• Maintainability
• Portability

Books

• Code Complete: A Practical Handbook of Software Construction, 2nd Edition
• The Pragmatic Programmer: From Journeyman to Master
• Clean Code: A Handbook of Agile Software Craftsmanship.
• Working Effectively with Legacy Code
• Refactoring: Improving the Design of Existing Code

Notes:

• Code Complete Notes
• S.O.L.I.D: The First 5 Principles of Object Oriented Design
• Inversion of Control Containers and the Dependency Injection pattern
• Design Patterns Card

SOLID

• Design Principles and Design Patterns
• SRP
• OCP
• LSP
• ISP
• DIP

Clean Code in five minutes, by Softhouse
